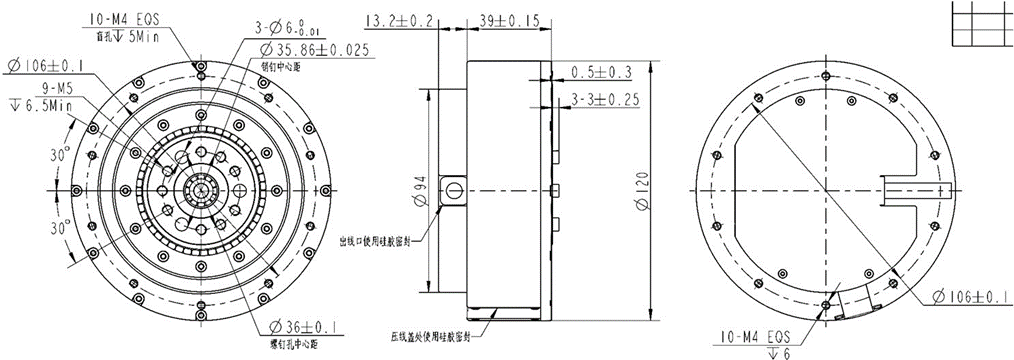

iSVD120C-48V-700-A14-001
- Manual Quote
| Item | Spec |
|---|---|
| Magnetic Encoder | 2 pcs |
| RatedVoltage Rated Voltage | 48V |
| OperatingVoltage Voltage Range | 15-60V |
| RatedOutputPower Rated Output Power | 700w ±10% |
| Rated Rated Torque | 40N.m |
| Peak Peak Torque | 120N.m |
| Running Direction | CW/CCW |
| OperatingTemperature Temperature Range | -20~50℃ |
| OperatingHumidity Humidity Range | 5~85% |
| Temperature Storage Temperature Range | -30~70℃ |
| Insulation class Insulation Level | Class B |
| Speed No-load Speed | 200 rpm ± 10% |
| Current No-load Current | 0.7 Arms ±10% |
| Rated Speed Rated Load Speed | 167 rpm ± 10% |
| Rated Phase current Rated Load Phase Current | 27Apk ± 10% |
| PeakPhase current Peak Phase Current | 90Apk ± 10% |
| Resistance/ Insulation Resistance/ Stator Winding | DC 500VAC，100M 0hms |
| / High Voltage Resistance/ Stator and Casing | 600VAC, 1s, 2mA |
| motor Back-EMF | 16.9 Vrms/krpm ±10% |
| Resistance Line Resistance | 0.16Ω ± 10% |
| Torque Torque Constant | 2.1N.m/Arms |
| motorInductance Inductance | 0.211mH ±10% |
| Weight Weight | 1420g |
| Poles Pole | 42 |
| Phase Phase | 3 |
| Drive Method | FOC |
| reduction ratio | 9:01 |
| N.m | Operating Time (s) |
| 40 | rated |
| 46 | 2500 |
| 70 | 350 |
| 80 | 160 |
| 120 | 10 |
