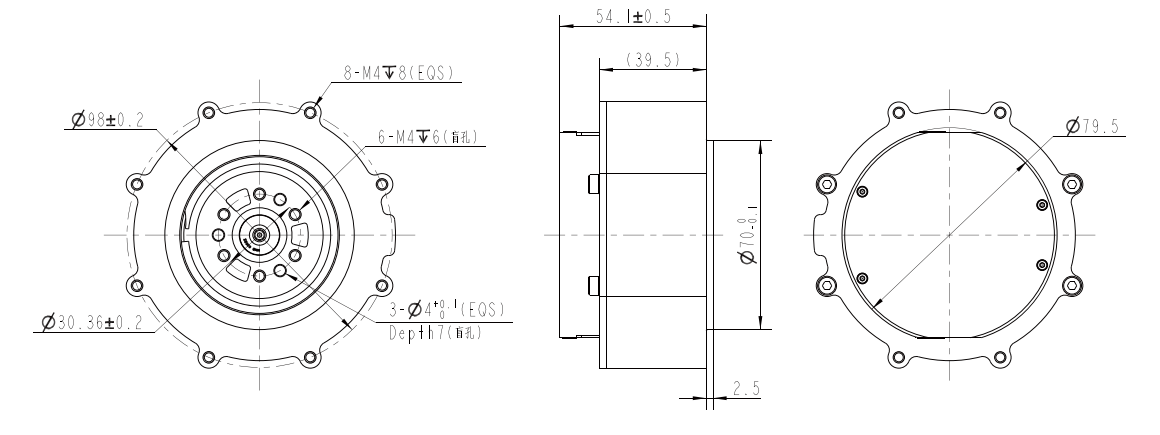

iSVD110C-48V-410-A14-001
- Manual Quote
| Item | |
|---|---|
| Rated⼯ Voltage | 48VDC |
| Max.Voltage | 60VDC |
| Rated⼯ Phase current | 12Apk |
| Max. Phase current | 43Apk |
| Power | ≤40mA |
| CAN | 1Mbps |
| ⼯ EnvironmentTemperature | -20℃⾄50℃ |
| Control Max.Temperature | 105℃ |
| 1 | MCU chip | GD32F303RET6 | 1 PCS |
| 2 | ⽚ | DRV8353SRTAT | 1PCS |
| 3 | ⽚ | AS5047P | 2 PCS |
| 4 | | LTS00- 104J395T19E010/ NCP18XH103F03RB | 2 PCS |
| 5 | MOS | ISC030N12NM6 | 12 PCS |
| iSVD110C-48V-410-A14-001(3D) | 88.28 KB |
| iSVD110C-48V-410-A14-001 | 385.96 KB |
| iSVD110C-48V-410-A14-001OperatingSpecifications 250227 | 1.97 MB |
Description
Product Center Planetary Joint Modules
1. Rated voltage: 48 VDC
2. Operating voltage range: 24–60 VDC
3. Rated load (CW): 20 N·m
4. Rotation direction: CW/CCW (viewed from the output shaft)
5. Mounting orientation: output shaft horizontal or vertical
6. Standard operating temperature: 25±5°C
7. Operating temperature range: −20 to 50°C
8. Standard operating humidity: 65%
9. Operating humidity range: 5–85%, non-condensing
10. Storage temperature range: −30 to 70°C
11. Insulation class: Class B
1. No-load speed: 200 rpm ±10%
2. No-load current: 2 Arms
3. Rated load: 20 N·m
4. Rated load speed: 180 rpm ±10%
5. Rated load phase current (peak): 13 Apk ±10%
6. Peak load: 60 N·m
7. Maximum load phase current (peak): 43 Apk ±10%
8. Insulation resistance / stator winding: DC 500 VAC, 100 MΩ
9. Withstand voltage / stator to frame: 600 VAC, 1 s, 2 mA
10. Motor back-EMF: 17 Vrms/krpm ±10%
11. Torque constant: 2.36 N·m/Arms
Datasheet download: 1750665735251500 1750260282676203
