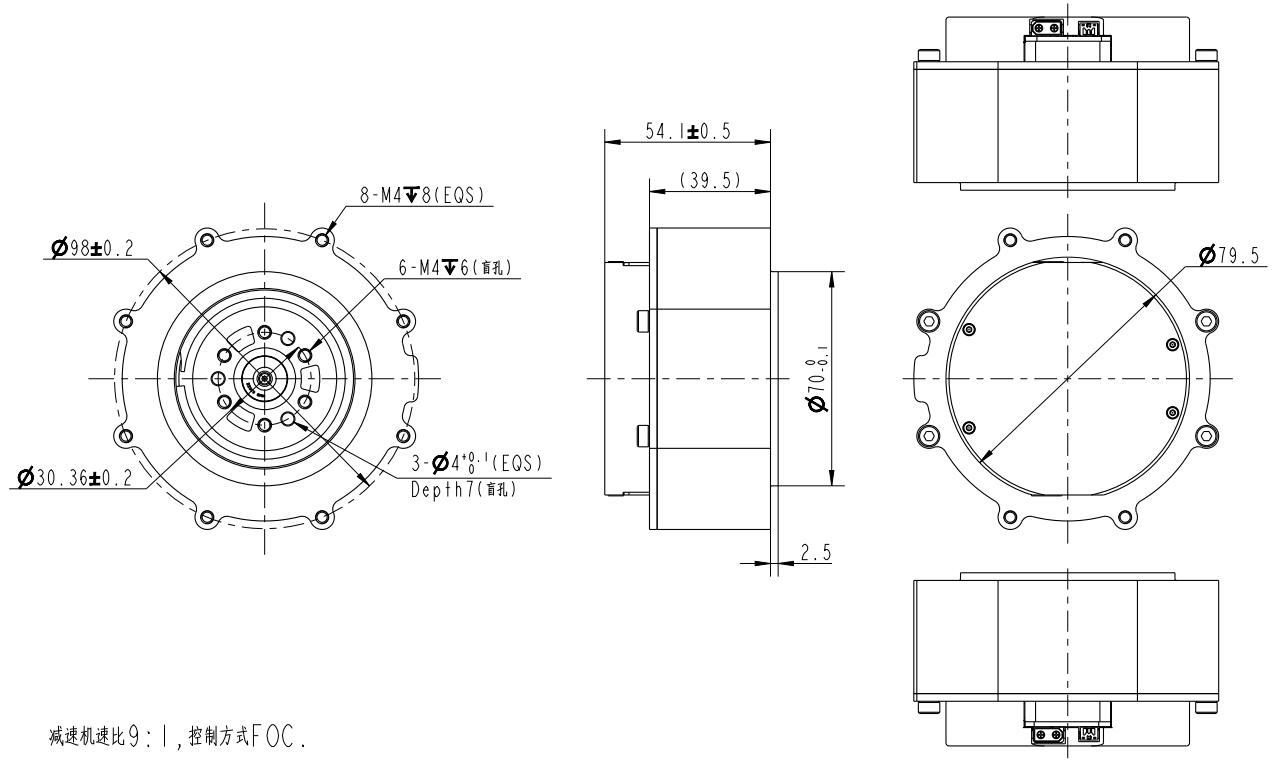

iSVD110C-48V-410-A14-001
- Manual Quote
| Item | Spec |
|---|---|
| Magnetic Encoder | 2 pcs |
| RatedVoltage Rated Voltage | 48V |
| OperatingVoltage Voltage Range | 15-60V |
| RatedOutputPower Rated Output Power | 380W±10% |
| Rated Rated Torque | 20N.m |
| Peak Peak Torque | 60N.m |
| Running Direction | CW/CCW |
| OperatingTemperature Temperature Range | -20~50℃ |
| OperatingHumidity Humidity Range | 5~85% |
| Temperature Storage Temperature Range | -30~70℃ |
| Insulation class Insulation Level | Class B |
| Speed No-load Speed | 195rpm±10% |
| Current No-load Current | 0.6Arms ±10% |
| Rated Speed Rated Load Speed | 180rpm±10% |
| Rated Phase current Rated Load Phase Current | 13Apk ± 10% |
| PeakPhase current Peak Phase Current | 43Apk ± 10% |
| Resistance/ Insulation Resistance/ Stator Winding | DC 500VAC，100M 0hms |
| / High Voltage Resistance/ Stator and Casing | 600VAC, 1s, 2mA |
| motor Back-EMF | 17Vrms/krpm ±10% |
| Resistance Line Resistance | 0.39Ω±10% |
| Torque Torque Constant | 2.36N.m/Arms |
| motorInductance Inductance | 0.275mH±10% |
| Weight Weight | 900g±20g |
| Poles Pole | 42 |
| Phase Phase | 3 |
| Drive Method | FOC |
| reduction ratio | 9:01 |
| N.m | Operating Time (s) |
| 20 | rated |
| 30 | 189 |
| 40 | 126 |
| 50 | 12 |
| 60 | 7 |
