FL86BLS
- Manual Quote
| Winding Type | ( Star connection) |
|---|---|
| Hall Effect Angle | 120 ( Electrical Angle of 120 degree) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max radial force | 220N @ 20 mm from the flange |
| Max axial force | 60N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ, 500VDC |
| Ambient Temperature | -20°C ~ +50°C |
| Insulation Class | Class B |
| Number of poles | 8 |
| Number of phases | 3 |
| Rated voltage | VDC | 48 |
| Rated torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| Continuous stall torque | N.m | 0.42 | 0.84 | 1.26 | 1.68 | 2.52 |
| Rated speed | RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated power | W | 110 | 220 | 330 | 440 | 660 |
| Peak torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| Peak current | A | 9.5 | 17.5 | 25 | 33.5 | 50 |
| Line to line resistance | ohms@20℃ | 0.9 | 0.34 | 0.2 | 0.16 | 0.1 |
| Line to line inductance | mH | 2.6 | 1 | 0.66 | 0.5 | 0.31 |
| Torque constant | N.m/A | 0.116 | 0.122 | 0.127 | 0.127 | 0.128 |
| Back EMF | Vrms/KRPM | 8.6 | 9 | 9.4 | 9.4 | 9.5 |
| Rotor inertia | g.cm2 | 400 | 800 | 1200 | 1600 | 2400 |

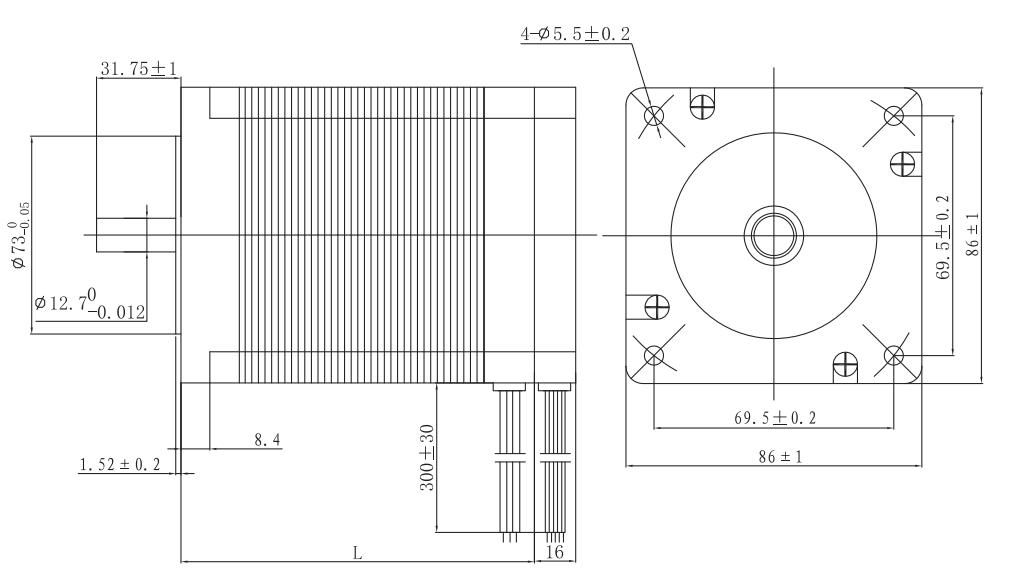

| Length ( Motor length ) L | mm | 56 | 70 | 84 | 96 | 123 |
| Weight | Kg | 1.6 | 2.12 | 2.64 | 3.15 | 4.2 |
| FL86BLS58 | 149.42 KB |
| FL86BLS84 | 149.67 KB |
| FL86BLS71 | 148.18 KB |
| FL86BLS98 | 149.52 KB |
| FL86BLS125 | 149.53 KB |
Description
Product Center Standard Brushless Motors
Electric Connection
Type Color FunctionsUL1332 AWG22 ( Red ) ( Vcc ) ( Blue ) U ( Hu ) ( Green ) V ( Hv ) ( White ) W ( Hw ) ( Black ) ( GND )UL1332 AWG18 ( Yellow )U ( Phase U ) ( Red )V ( Phase V ) ( Black)W ( Phase W )
This motor can be customized to meet customer requirements.
Datasheet download: 1690207106258259 1690207106666474 1690207107144166 1690207107344476 1690207107264102
