FL86BLC
- Manual Quote
| Winding Type | ( Star connection) |
|---|---|
| Hall Effect Angle | 120 ( Electrical Angle of 120 degree) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max radial force | 220N@ 20 mm from the flange |
| Max axial force | 45N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ, 500VDC |
| Ambient Temperature | -20°C ~ +50°C |
| Insulation Class | Class B |
| Number of poles | 8 |
| Number of phases | 3 |
| Rated voltage | VDC | 48 |
| Rated torque | N.m | 0.4 | 0.8 | 1.6 | 2.22 |
| Continuous stall torque | N.m | 0.48 | 0.96 | 1.92 | 2.66 |
| Rated speed | RPM | 3000 | 3000 | 3000 | 3000 |
| Rated power | W | 130 | 250 | 500 | 700 |
| Peak torque | N.m | 1.2 | 2.4 | 4.8 | 6.66 |
| Peak current | A | 10 | 17 | 36 | 51 |
| Line to line resistance | ohms@20℃ | 1 | 0.34 | 0.14 | 0.1 |
| Line to line inductance | mH | 1.4 | 0.6 | 0.36 | 0.24 |
| Torque constant | N.m/A | 0.122 | 0.149 | 0.135 | 0.131 |
| Back EMF | Vrms/KRPM | 9 | 11 | 10 | 9.7 |
| Rotor inertia | g.cm2 | 400 | 800 | 1600 | 2400 |

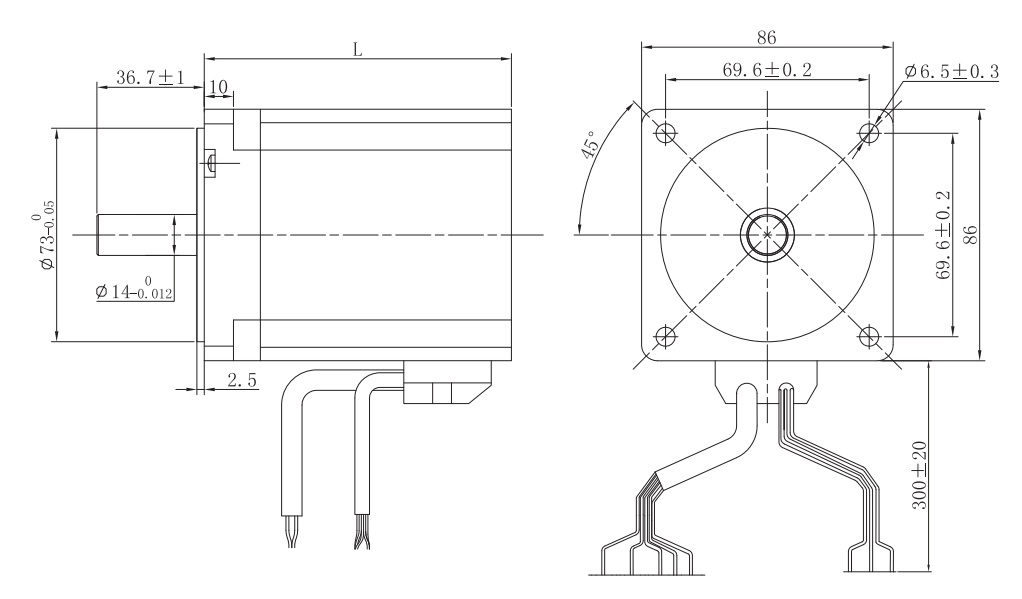

| Length ( Motor length ) L | mm | 64 | 77 | 105 | 125 |
| Weight | Kg | 1.5 | 1.85 | 2.7 | 4 |
| FL86BLC64 | 260.11 KB |
| FL86BLC77 | 263.67 KB |
| FL86BLC105 | 264.11 KB |
| FL86BLC125 | 262.71 KB |
Description
Product Center Standard Brushless Motors
Electric Connection
Type Color FunctionsUL1430 AWG24 ( Red ) ( Vcc ) ( Blue ) U ( Hu ) ( Green ) V ( Hv ) ( White ) W ( Hw ) ( Black ) ( GND )UL1332 AWG16 ( Yellow )U ( Phase U ) ( Red )V ( Phase V ) ( Black)W ( Phase W )
This motor can be customized to meet customer requirements.
