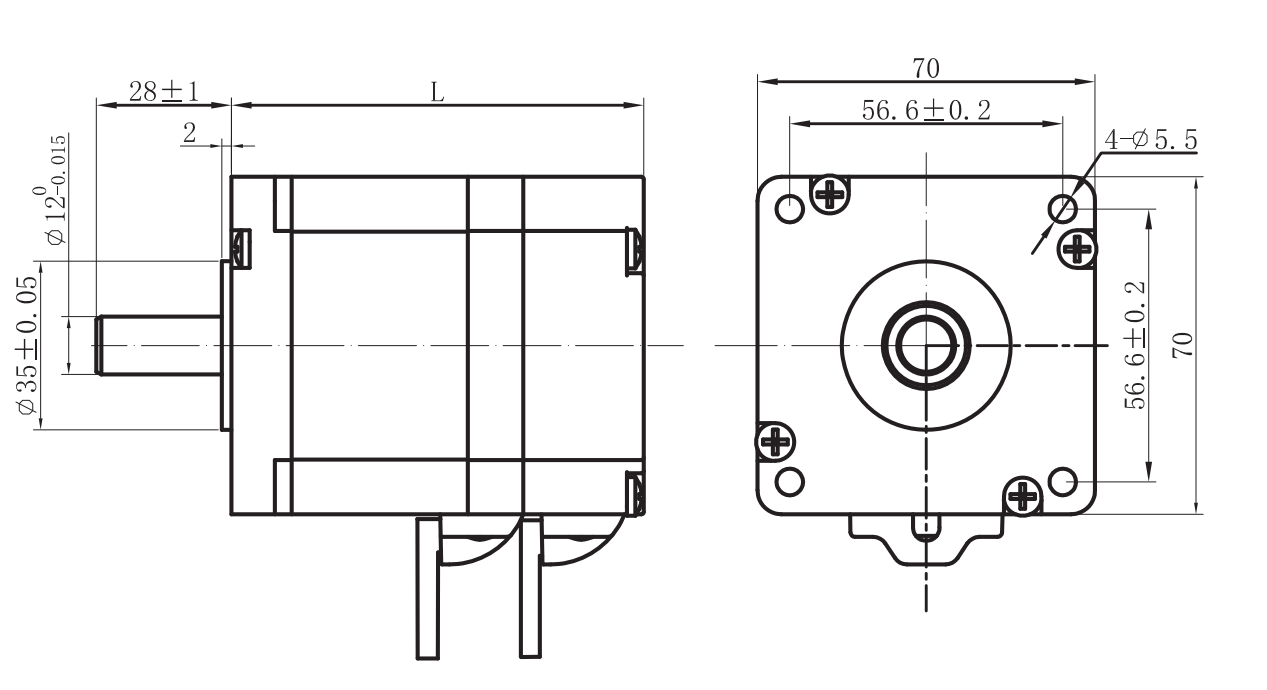

FL70BLS
- Manual Quote
| Winding Type | ( Star connection) |
|---|---|
| Hall Effect Angle | 120 ( Electrical Angle of 120 degree) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max radial force | 115N @ 20 mm from the flange |
| Max axial force | 45N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ, 500VDC |
| Ambient Temperature | -20°C ~ +50°C |
| Insulation Class | Class B |
| Number of poles | 8 |
| Number of phases | 3 |
| Rated voltage | VDC | 48 |
| Rated torque | N.m | 0.5 | 1.0 | 1.5 |
| Continuous stall torque | N.m | 0.6 | 1.2 | 1.8 |
| Rated speed | RPM | 3000 | 3000 | 3000 |
| Rated power | W | 157 | 314 | 471 |
| Peak torque | N.m | 1.5 | 3.0 | 4.5 |
| Peak current | A | 13.0 | 26 | 38 |
| Line to line resistance | ohms@20℃ | 0.6 | 0.3 | 0.22 |
| Line to line inductance | mH | 1.4 | 0.7 | 0.55 |
| Torque constant | Nm/A | 0.12 | 0.12 | 0.12 |
| Back EMF | Vrms/KRPM | 9.0 | 9.0 | 9.0 |
| Rotor inertia | g.cm2 | 200 | 400 | 600 |
| Length ( Motor length ) L | mm | 86 | 116 | 136 |
| Weight | Kg | 1.3 | 2.1 | 2.9 |
Description
Product Center Standard Brushless Motors
Electric Connection
Type Color FunctionsUL2464 AWG26 ( Red ) ( Vcc ) ( Blue ) U ( Hu ) ( Green ) V ( Hv ) ( White ) W ( Hw ) ( Black ) ( GND )UL2464 AWG16 ( Yellow )U ( Phase U ) ( Red )V ( Phase V ) ( Black)W ( Phase W )
This motor can be customized to meet customer requirements.
