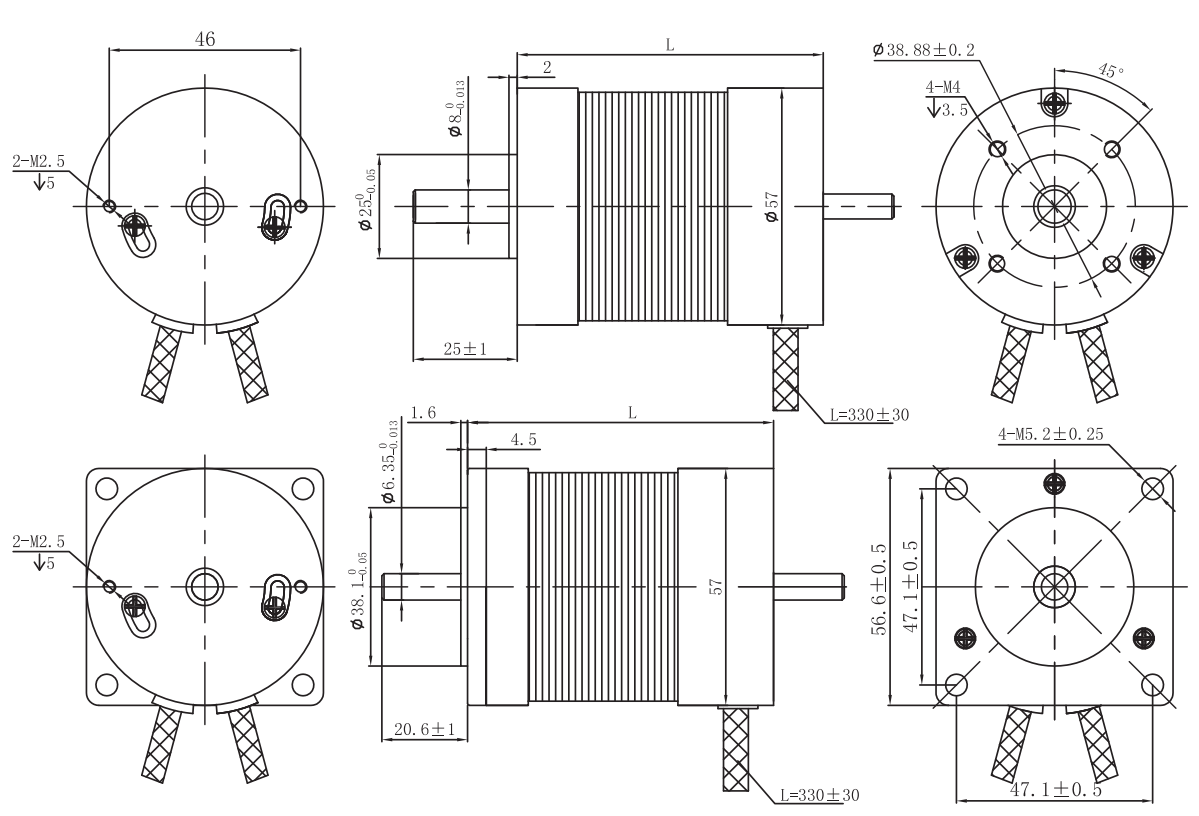

FL57BLA
- Manual Quote
| Winding Type | ( Star connection) |
|---|---|
| Hall Effect Angle | 120 ( Electrical Angle of 120 degree) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max radial force | 115N @ 20 mm from the flange |
| Max axial force | 45N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ, 500VDC |
| Ambient Temperature | -20°C ~ +50°C |
| Insulation Class | Class B |
| Number of poles | 6 |
| Number of phases | 3 |
| Rated voltage | VDC | 36 |
| Rated torque | N.m | 0.2 | 0.4 | 0.6 | 0.8 |
| Continuous stall torque | N.m | 0.24 | 0.48 | 0.72 | 0.96 |
| Rated speed | RPM | 4000 | 4000 | 4000 | 4000 |
| Rated power | W | 83 | 166 | 249 | 332 |
| Peak torque | N.m | 0.6 | 1.2 | 1.8 | 2.4 |
| Peak current | A | 9.1 | 17.9 | 28.2 | 34.3 |
| Line to line resistance | ohms@20℃ | 0.87 | 0.38 | 0.25 | 0.21 |
| Line to line inductance | mH | 1 | 0.55 | 0.3 | 0.25 |
| Torque constant | N.m/A | 0.066 | 0.067 | 0.064 | 0.07 |
| Back EMF | Vrms/KRPM | 4.9 | 5 | 4.7 | 5.2 |
| Rotor inertia | g.cm2 | 275 | 375 | 510 | 693 |
| Length ( Motor length ) L | mm | 53.6 | 73.6 | 93.6 | 113.6 |
| Weight | Kg | 0.76 | 1 | 1.25 | 1.52 |
Description
Product Center Standard Brushless Motors
Electric Connection
Type Color FunctionsUL1430 AWG26 ( Red ) ( Vcc ) ( Blue ) U ( Hu ) ( Green ) V ( Hv ) ( White ) W ( Hw ) ( Black ) ( GND )UL1332 AWG18 ( Yellow )U ( Phase U ) ( Red )V ( Phase V ) ( Black)W ( Phase W )
This motor can be customized to meet customer requirements.
