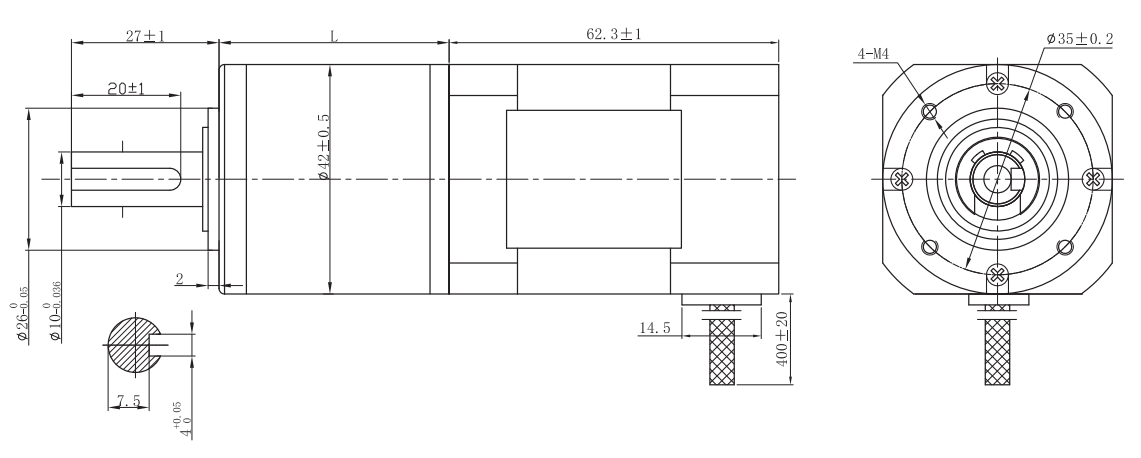

FL42BLS60-42JM100K
- Manual Quote
| U | V | W | Vcc | Ha | Hb | Hc | GND |
|---|---|
| Yellow | Black |
| UL1430 AWG20 | UL1430 AWG26 |
| motor | |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL42BLS60-2460 | 8 | 3 | 24 | 6000 | 4000 | 125 | 52.5 | 380 | 10.6 | 0.8 | 1.2 |
| FL42BLA60-2440 | 10 | 3 | 24 | 4000 | 3000 | 160 | 50 | 480 | 8 | 1.1 | 0.96 |
| FL42BLB60-2440 | 6 | 3 | 24 | 4000 | 3000 | 170 | 53.5 | 510 | 9 | 1.05 | 0.75 |
Description
Product Center Planetary Gearboxes
BLDC Planetary Gear Moto （Ring Gear Material: Metal）
Brushless Gear Motor Technical Data
Reduction ratio3.715.181419274959588295115 Number of gear trains11222333333 (L) Length(L)mm31.531.542.142.142.152.552.552.552.552.552.5 Rated speedr/min1078772286211148826859494235 Rated torqueN.m0.420.581.41.92.74.45.36.27.48.710 Max. permissible load in a short timeN.m33121212252525252525
Brushless Gear Motor Technical Data
Reduction ratio3.715.181419274959588295115 Number of gear trains11222333333 (L) Length(L)mm31.531.542.142.142.152.552.552.552.552.552.5 Rated speedr/min809579214158111615144373226 Rated torqueN.m0.530.741.82.43.55.76.87.99.51010 Max. permissible load in a short timeN.m33121212252525252525
Brushless Gear Motor Technical Data
Reduction ratio3.715.181419274959588295115 Number of gear trains11222333333 (L) Length(L)mm31.531.542.142.142.152.552.552.552.552.552.5 Rated speedr/min809579214158111615144373226 Rated torqueN.m0.560.791.92.63.76.17.38.4101010 Max. permissible load in a short timeN.m33121212252525252525
With FL42BLS60-2460 BLDC motor
With FL42BLA60-2440 BLDC motor
With FL42BLB60-2440 BLDC motor
