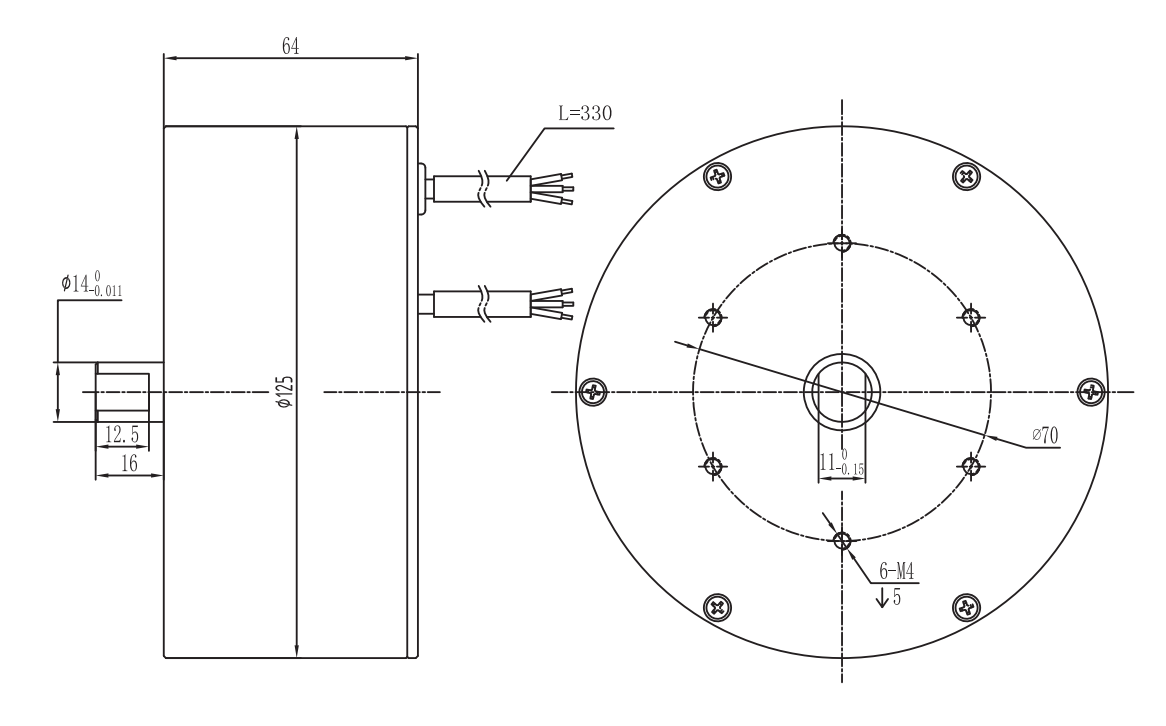

FL125BL
- Manual Quote
| Winding Type | ( Star connection) |
|---|---|
| Hall Effect Angle | 120 ( Electrical Angle of 120 degree) |
| Radial Play | 0.025mm@460g |
| Axial Play | 0.08mm@4000g |
| Max radial force | 220N @ 20 mm from the flange |
| Max axial force | 60N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ, 500VDC |
| Ambient Temperature | -20°C ~ +50°C |
| Insulation Class | Class B |
| Number of poles | 28 |
| Number of phases | 3 |
| Rated voltage | VDC | 60 |
| Rated torque | N.m | 6.8 |
| Continuous stall torque | N.m | 8.16 |
| Rated speed | RPM | 400 |
| Rated power | W | 285 |
| Peak torque | N.m | 20 |
| Peak current | A | 22.7 |
| Line to line resistance | ohms@20℃ | 1.1 |
| Line to line inductance | mH | 2.4 |
| Torque constant | N.m/A | 0.88 |
| Back EMF | Vrms/KRPM | 65 |
| Rotor inertia | g.cm2 | 2100 |
| Length ( Motor length ) L | mm | 64 |
| Weight | Kg | 2.9 |
Description
Product Center Standard Brushless Motors
Electric Connection
Type Color FunctionsUL1332 AWG22 ( Red ) ( Vcc ) ( Blue ) U ( Hu ) ( Green ) V ( Hv ) ( White ) W ( Hw ) ( Black ) ( GND )UL3135 AWG14 (Yellow)U ( Phase U ) ( Red)V ( Phase V ) ( Black)W ( Phase W )
This motor can be customized to meet customer requirements.
